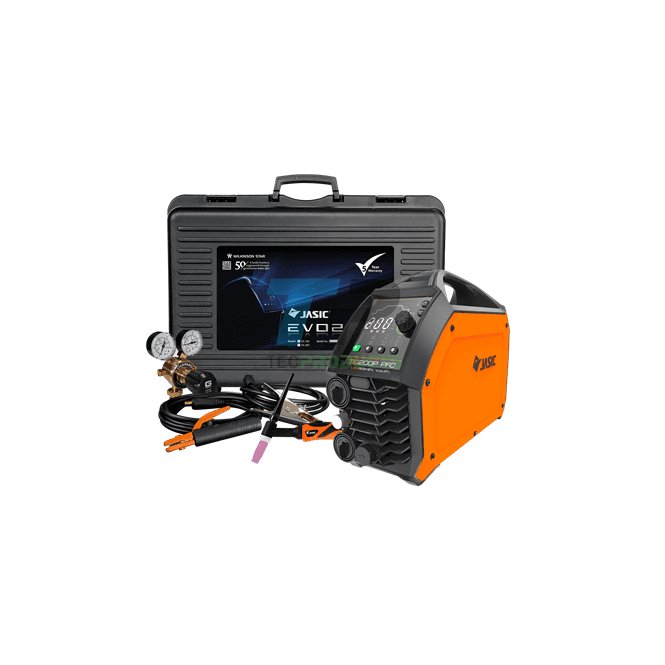

Jasic EVO TIG ET200P PFC Pulse Air-Cooled DC TIG Welder Package 110/230V
- Now £719.00 (ex. VAT)
- (FREE UK Delivery)
Jasic EVO 2.0 TIG 200P DC TIG Welder
The Jasic EVO 2.0 TIG 200P is a next-generation DC TIG inverter built for welders who demand precision, reliability, and modern control in a compact, industrial package. Part of the new EVO 2.0 series, this machine combines a rugged, ergonomic design with an intuitive human-machine interface, delivering outstanding performance in workshop and site environments alike.
Engineered with Dash-Arc high-frequency ignition and Smart Lift-TIG technology, the TIG 200P delivers fast, reliable arc starts with excellent control. Full DC pulse TIG functionality allows fine adjustment of pulse parameters, helping you manage heat input, improve bead appearance, and achieve consistent results on thin or heat-sensitive materials. Smart Gas technology further enhances efficiency by automatically optimising post-flow gas times, reducing waste without compromising weld quality.
Designed for real-world conditions, the EVO 2.0 TIG 200P features power factor correction (PFC) for improved energy efficiency and generator compatibility, along with a wide input voltage range for dependable performance wherever you’re working. ABAP (Active Balancing Air Passage) cooling and a fan-on-demand system protect key components while reducing noise and power consumption, supported by auto sleep mode for maximum efficiency.
Safety and durability are built in as standard, with VRD, overcurrent and overheat protection, and comprehensive electronic safeguarding. Optional remote control solutions provide added flexibility, while quick factory reset ensures simple recovery from incorrect settings. Supplied complete with TIG torch, earth lead, gas hose, and regulator, the EVO 2.0 TIG 200P is ready to work straight out of the box.
Backed by a 5-year warranty, the Jasic EVO 2.0 TIG 200P DC TIG Welder delivers modern technology, dependable performance, and long-term peace of mind—engineered to perform today and built to last.
Key Features
- 5 Years Warranty
- Rugged, robust, and industrial look with ergonomic design
- Clear Vision technology
- Adaptable wide voltage range
- Dash-Arc
- Smart Lift TIG
- Full-featured DC pulse TIG parameters
- Flexible remote control solutions (Optional)
- Power factor correction (PFC), Generator friendly
- Quick factory reset; auto sleep mode
- ABAP: Active Balancing Air Passage
- Smart Gas for optimised shielding gas consumption
- Fan cooling on demand
- Voltage Reduction Device (VRD)
- Key power electronic component protection
- Over current and overheat protection
- Complete with tig torch, earth lead, gas hose and regulator
Industrial Design Highlights
Streamlined Handle
Elevates overall aesthetics of the power source and provides a comfortable, firm and glove-friendly grip.
Control Panel
Slanted 45° angle for enhanced visibility and viewing comfort.
Overall Look
Rugged, robust and industrial.
Lateral Plate
Detachable for easy servicing, reinforced for enhancing the structures impact strength.
Front Grill
A sloped front grill offers a perfect balance between heat dissipation and ingress protection (IP23S).
Industrial Design Highlights
Streamlined Handle
Elevates overall aesthetics of the power source and provides a comfortable, firm and glove-friendly grip.
Control Panel
Slanted 45° angle for enhanced visibility and viewing comfort.
Overall Look
Rugged, robust and industrial.
Lateral Plate
Detachable for easy servicing, reinforced for enhancing the structures impact strength.
Front Grill
A sloped front grill offers a perfect balance between heat dissipation and ingress protection (IP23S).

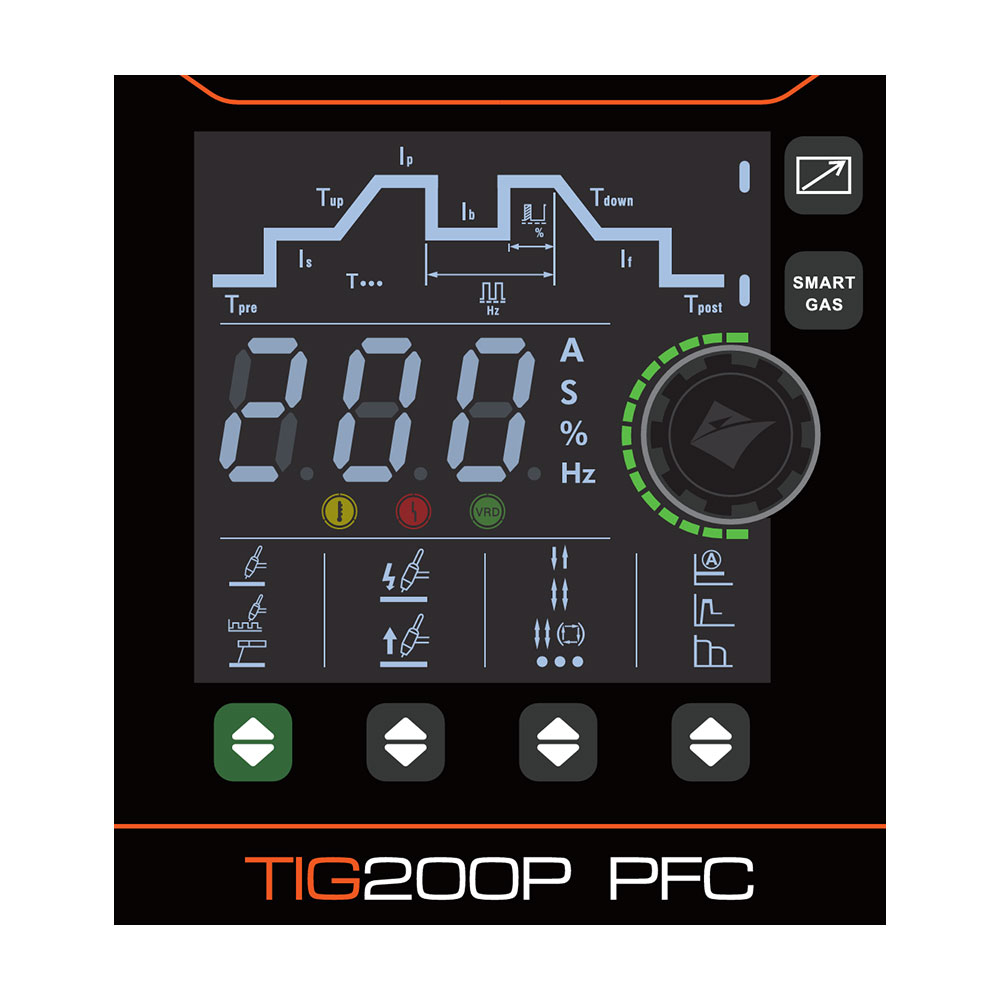

ClearVision Technology
The next-generation HD digital display delivers crisp, high-contrast readings that remain clearly visible even in direct sunlight. A 45° slanted control panel improves viewing comfort and provides a 41% larger viewing area compared to traditional vertical panels.
Overheat & Overcurrent Protection
The overheat warning light indicates that the machine has entered overheat protection and stops the welding output, the machine will re-activate once the unit has cooled down.
The overcurrent warning light indicates that the machine has entered over-current protection and stops the output. The machine can be reset by turning off and then back on.
Voltage Reduction Device
In MMA (Stick) mode VRD reduces the open-circuit voltage of the inverter.
When the welding machine is on, but not being used (like when you’ve just finished an electrode and need to grab a new one), the VRD kicks in and lowers the voltage to a safer level (usually around 13V).
ClearVision Technology
The next-generation HD digital display delivers crisp, high-contrast readings that remain clearly visible even in direct sunlight. A 45° slanted control panel improves viewing comfort and provides a 41% larger viewing area compared to traditional vertical panels.
Overheat & Overcurrent Protection
The overheat warning light indicates that the machine has entered overheat protection and stops the welding output, the machine will re-activate once the unit has cooled down.
The overcurrent warning light indicates that the machine has entered over-current protection and stops the output. The machine can be reset by turning off and then back on.
Voltage Reduction Device
In MMA (Stick) mode VRD reduces the open-circuit voltage of the inverter.
When the welding machine is on, but not being used (like when you’ve just finished an electrode and need to grab a new one), the VRD kicks in and lowers the voltage to a safer level (usually around 13V).
Active Balancing Air Passage
- Internal airflow is optimally diverged by a segregation structure.
- The divergence of airflow can dissipate heat generated by power electronics in a more balanced manner.
- The power source's overall reliability is improved with the internal structure design.
Active Balancing Air Passage
- Internal airflow is optimally diverged by a segregation structure.
- The divergence of airflow can dissipate heat generated by power electronics in a more balanced manner.
- The power source's overall reliability is improved with the internal structure design.

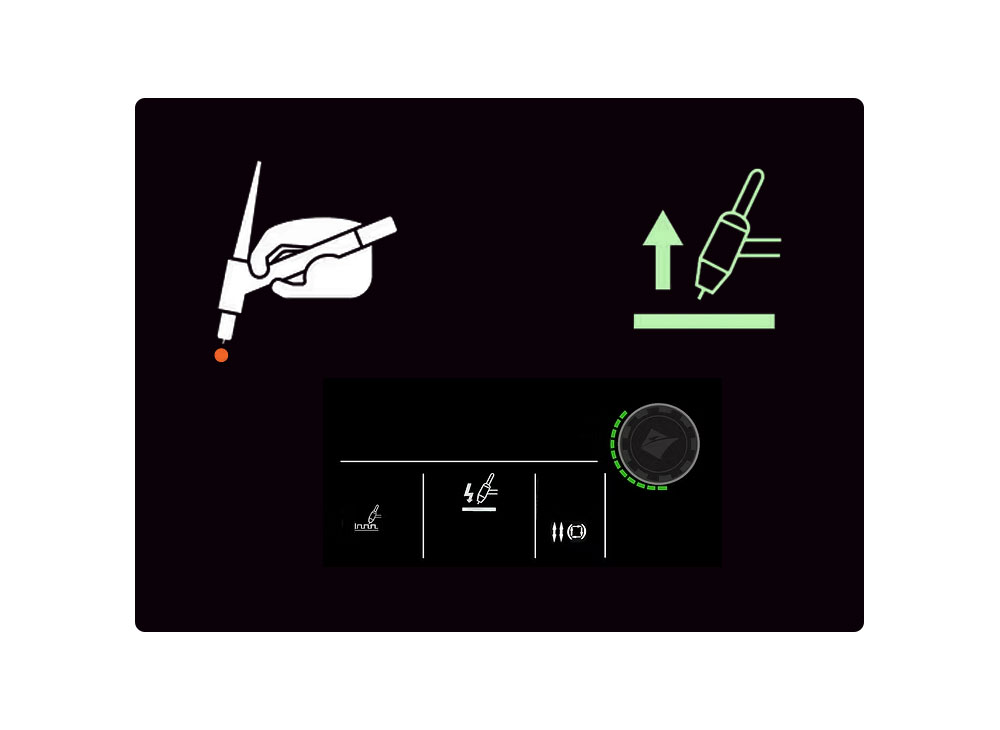

Smart Lift-TIG
The trigger controlled DC Lift Arc ignition allows the arc to be started easily by simply touching the tungsten to the workpiece and lifting it up to start the arc. This stops the tungsten tip sticking to the workpiece and breaking the tip from the tungsten electrode.
DC Pulse TIG
Minimise the heat input without compromising on penetration. Alternating between a peak and base current reduces the amount of heat input and focuses the arc.
Intelligent Synergetic Control
Getting set up for a weld has never been faster with our preset synergic programs. Simply select your wire type, wire size, gas type and material thickness, and the machine does the rest. It’ll pick the optimal settings for your weld.
Smart Lift-TIG
The trigger controlled DC Lift Arc ignition allows the arc to be started easily by simply touching the tungsten to the workpiece and lifting it up to start the arc. This stops the tungsten tip sticking to the workpiece and breaking the tip from the tungsten electrode.
DC Pulse TIG
Minimise the heat input without compromising on penetration. Alternating between a peak and base current reduces the amount of heat input and focuses the arc.
Intelligent Synergetic Control
Getting set up for a weld has never been faster with our preset synergic programs. Simply select your wire type, wire size, gas type and material thickness, and the machine does the rest. It’ll pick the optimal settings for your weld.
