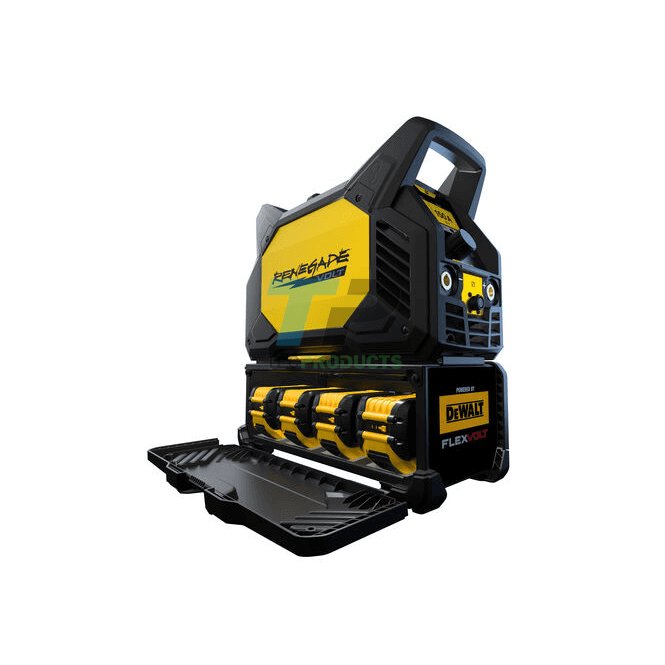

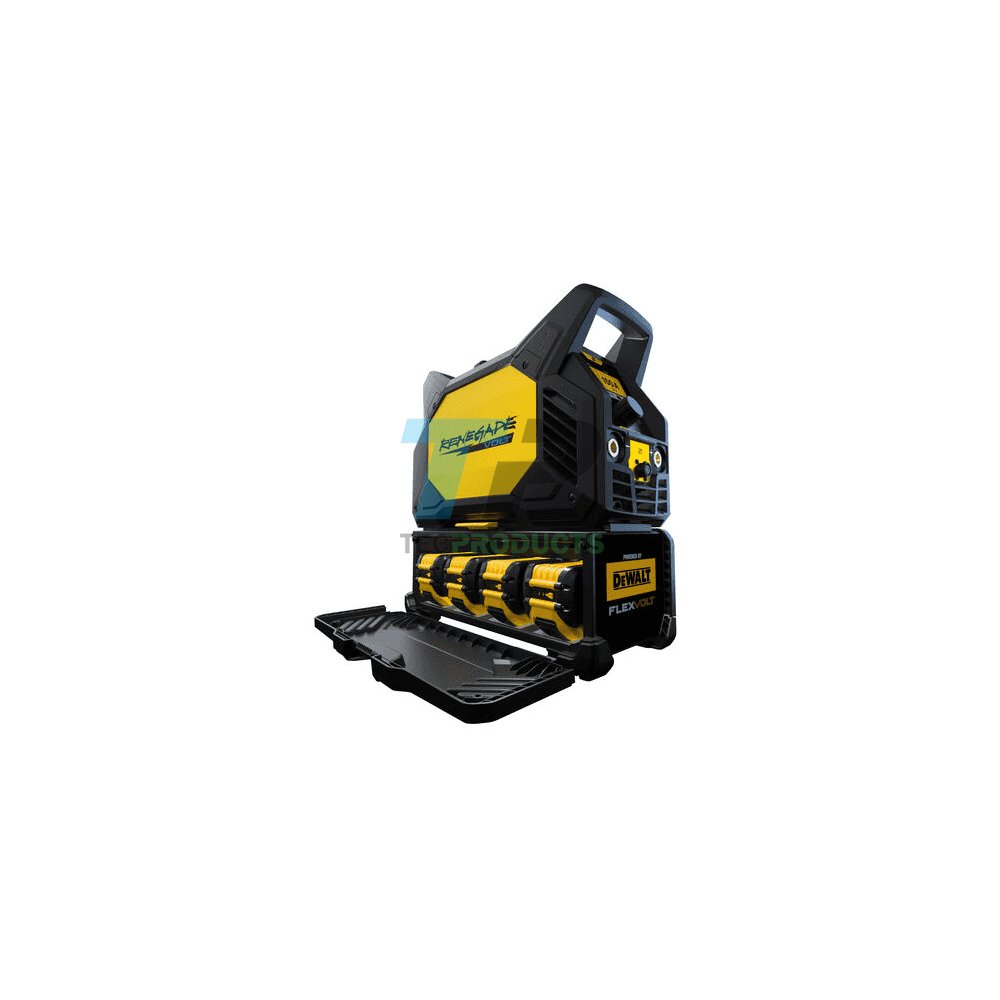

ESAB Renegade VOLT ES 200i Battery Powered Welder

The ESAB Renegade VOLT™ ES 200i is a true game-changer for welders who need power on the go. This compact, cordless Stick (SMAW) and Live TIG (GTAW) welder can run on battery, mains power, or a clever AMP+ Hybrid Mode — giving you total flexibility wherever the job takes you.


Powered by DEWALT® FLEXVOLT® batteries (6 Ah, 9 Ah, or 12 Ah), the Renegade VOLT delivers serious performance. With four 12 Ah batteries, you can burn through up to 33 E6013 electrodes on a single charge, and those batteries come included.*

Whether you’re working offsite, in a remote location, or somewhere mains power is limited, this machine is built to keep up. In AMP+

Hybrid Mode, it combines mains and battery power, which helps stop smaller breakers (like 10A or 16A) from tripping — and gives you an extra boost when running on 120V input.



The Renegade VOLT isn’t just powerful — it’s designed to take a beating. It features a tough, impact-resistant housing and multiple lift points, making it easy to move around the site. The bright, full-colour display is made for outdoor use, even in direct sunlight, and gives you useful info like battery status and estimated arc time at a glance.



Performance-wise, it delivers a smooth, stable arc with handy functions such as hot start, arc force, memory storage, and a dedicated cellulosic mode (6010), letting you fine-tune settings to suit the job.


*Based on standard operating conditions.

Features:

  • 200 A output on AC mains (230V)
  • Up to 140 A output on battery power
  • Includes (4) DEWALT FLEXVOLT 20V/60V max 12 Ah batteries
  • AMP+ Hybrid Mode for extra power
  • Lightweight and portable battery powered welder
  • Durable, impact-resistant housing
  • Sun-friendly, intuitive user interface
  • Memory storage for welding parameters

Industries:

  • Agricultural Equipment
  • Civil Construction
  • Food and Beverage
  • Marine and Offshore
  • Mining
  • Power Generation
  • Repair and Maintenance
  • Railcars
  • Ship and Offshore Yards
  • Transportation

Processes:

  • SMAW/MMA (Stick)
  • GTAW (TIG)

Please note: This item is a special order item that needs to be ordered from the manufacturer.

Powerful mains and battery-powered welding.

Power when you need it! Anywhere! Renegade VOLT delivers the performance of a mains-powered welder with the freedom of cordless. Weld up to 30 electrodes on a single charge using four 12Ah DEWALT® FLEXVOLT® batteries, or plug into the mains and keep going. No limits. No downtime.

Powerful mains- and battery-powered welding.

Power when you need it! Anywhere! Renegade VOLT delivers the performance of a mains-powered welder with the freedom of cordless. Weld up to 30 electrodes on a single charge using four 12Ah DEWALT® FLEXVOLT® batteries, or plug into the mains and keep going. No limits. No downtime.

Portable Grab-and-Go welding.

Take your welding anywhere. Renegade VOLT is up to 5× smaller and lighter than a standard compact welder-generator, making it easy to carry in one or two pieces. No generator? No problem — this portable powerhouse fits where others can’t.

Portable Grab-and-Go welding.

Take your welding anywhere. Renegade VOLT is up to 5× smaller and lighter than a standard compact welder-generator, making it easy to carry in one or two pieces. No generator? No problem — this portable powerhouse fits where others can’t.

Welder Technical Specifications
Input Voltage Voltage 120/230 VAC ± 15%, 1ph, 50/60 Hz
Rated kVA 6.0 kVA @ 230 VAC | 2.7 kVA @ 120 VAC
Fuse Slow 16 A
Welding Output, MMA 120V - 110 A / 24.4 V @ 25 % | 70 A / 22.8 V @ 60 % | 55 A / 22.2 V @ 100 % || 230V - 200 A / 28.0 V @ 25 % | 129 A / 25.2 V @ 60 % | 100 A / 24.0 V @ 100 %
Welding Output, MMA (Battery Mode) 80V - 130 A / 25.2 V @ 18 % | 110 A / 24.4 V @ 25 % | 80 A / 23.2 V @ 60 % | 60 A / 22.4 V @ 100 %
Welding Output, MMA (Hybrid Mode) AMP+ 120V - 150 A / 26.0 V @ 25 % | 90 A / 23.6 V @ 60 % | 70 A / 22.8 V @ 100 % || 230V - 200 A / 28.0 V @ 25 % | 129 A / 25.2 V @ 60 % | 100 A / 24.0 V @ 100 %
Voltage Range 90-270 VAC
Welding Output, TIG 120V - 140 A / 15.6 V @ 25 % | 90 A / 13.6 V @ 60 % | 70 A / 12.8 V @ 100 % || 230V - 200 A / 18.0 V @ 25 % | 129 A / 15.2 V @ 60 % | 100 A / 14.0 V @ 100 %
Welding Output, TIG (Battery Mode) 80V - 150 A / 16.0 V @ 18 % | 115 A / 14.6 V @ 25 % | 90 A / 13.6 V @ 60 % | 70 A / 12.8 V @ 100 %
Welding Output, TIG (Hybrid Mode) AMP+ 120V - 180A / 17.2 V @ 25 % | 130A / 15.2 V @ 60 % | 100A / 14.0 V @ 100 % || 230V - 200A / 18.0 V @ 25 % | 129A / 15.2 V @ 60 % | 100A / 14.0 V @ 100 %
Setting Range, MMA 120 VAC 10A/20.6 – 110A/24.4V
Setting Range, MMA 230 VAC 10A/20.6 – 200A/28V
Setting Range, MMA (120 VAC Hybrid Mode) AMP+ 10A/20.6 – 150A/26V
Setting Range, MMA (230 VAC Hybrid Mode) AMP+ 10A/20.6 – 200A/28V
Setting Range, MMA 80V (Battery Mode) 10A/20.6 – 130A/25.2V (80 VDC Battery Mode)
Setting Range, TIG 120 VAC 10A/10.4 – 140A/15.6V
Setting Range, TIG 230 VAC 10A/10.4 – 200A/18V
Setting Range, TIG (120 VAC Hybrid Mode) AMP+ 10A/10.4 – 180A/17.2V
Setting Range, TIG (230 VAC Hybrid Mode) AMP+ 10A/10.4 – 200A/18V
Setting Range, TIG 80V (Battery Mode) 10A/10.4 – 150A/16V (80 VDC Battery Mode)
Dimensions 460 x 200 x 320 mm
Dimensions L x W x H, with battery box 480 x 220 x 485 mm
Weight, power source and battery box 17 kg
Weight, power source, battery box and 4 battery packs 23 kg
Operating temperature range -10° to 40° C
Open Circuit Voltage 78 VDC
Protection Class IP23
Certification Mark CE, UKCA
Power Factor at Maximum Current 0.99
Efficiency at Maximum Current 80%
Supply Plug CEE 7/7 (type E)
