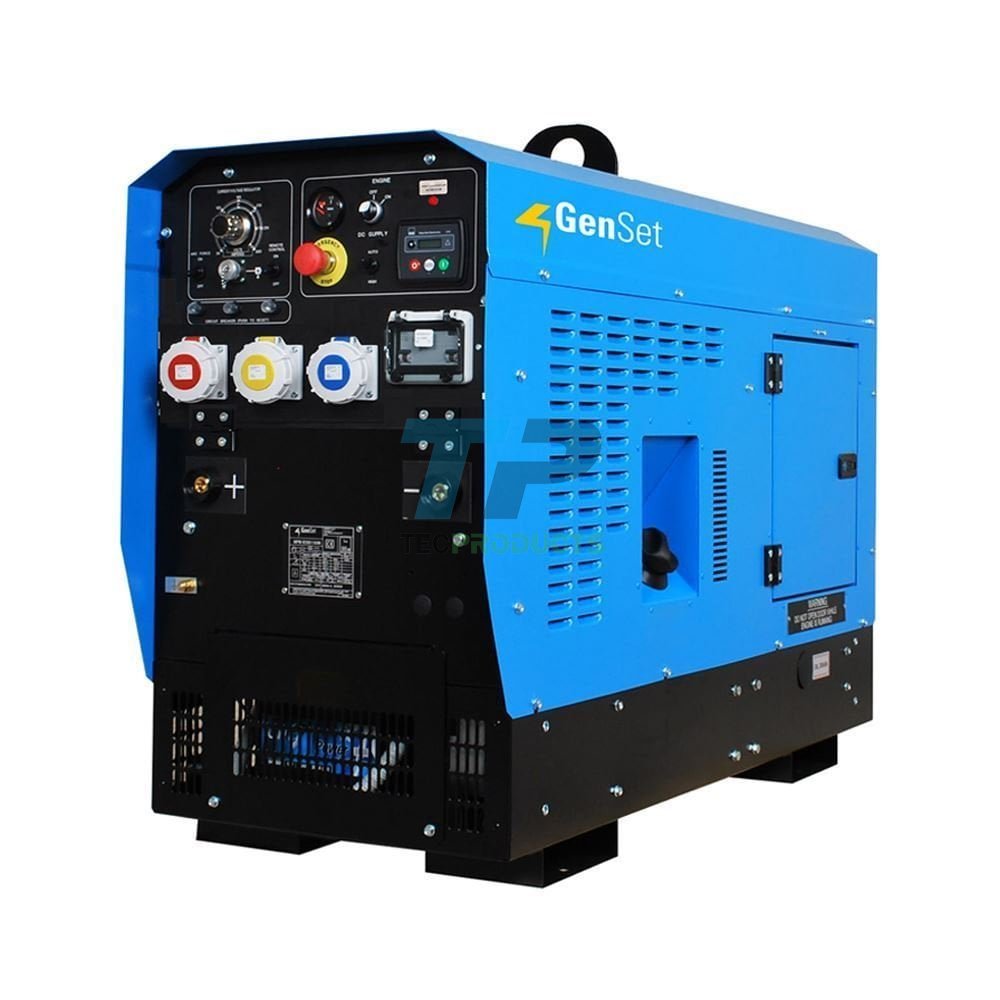

Genset 300A Yanmar Diesel Engine Driven Welder

Code: GS-WG300DY
  • Now $17,620.55
  • (FREE UK Delivery)
  |
Loading...

Compact and resistant engine driven welder, thanks to the forklift pockets and the practical

central lifting hook is suitable for frequent handling. Equipped with Yanmar 3000 RPM

engine and on board control, it’s fitted for remote control operation. Asynchronous alternator

for a better welding current quality, clean and distortion free wave form.

Features:

  • Shielded Metal Arc Welding (SMAW) CV MIG (GMAW)
  • Arc force control
  • Remote control socket
  • Controller with digital display for monitoring of generator parameters: generator voltage, battery voltage, frequency, hourmeter, oil pressure, water temperature, fail to start
  • With auto engine protection shutdown system in case of: low oil pressure, high coolant temperature, over/under voltage, over/under frequency
  • High alternator temperature warning light
  • Starting battery
  • Automatic idle device when no load is connected
  • Emergency stop button
  • 1 x 32A 110V single phase socket
  • 1 x 32A 230V single phase socket
  • 1 x 16A 400V three phase socket
  • Earth leakage circuit breaker (ELCB)
  • Power output protections
  • Central lifting hook
  • Engine oil drain pipe

Technical Data:

Noise Level (LWA)

99 (74dB a 7m)

AC Generator 50Hz

Asynchronous

Three Phase Max. Power

8kVA - 400V

Single Phase Max. Power

4.6kVA - 230V

Single Phase Max. Power

2.7kVA - 110V

Power Factor

DC Welding

Electronic current regulation

Duty Cycle @ 60%

270A - 31V

Output Range

30A - 300A

Open Circuit Voltage

70V

Max Welding Rod

6mm

Yanmar Engine

3TNM72

Fuel

Diesel

No. Cylinders

3

Power

19.4HP (14.4kWm)

Displacement

904cm3

Cooling System

Water

Starting System

Electric

Fuel Tank Capacity

30l

Fuel Consumption @ 75%

5.1l/h

Insulation Class

H

Ambient Temperature

40ºC

Altitude

1000m

Degree of Protection

IP23

Dimensions (LxWxH)

1408 x 532 x 1015mm

Dry Weight

385Kg
