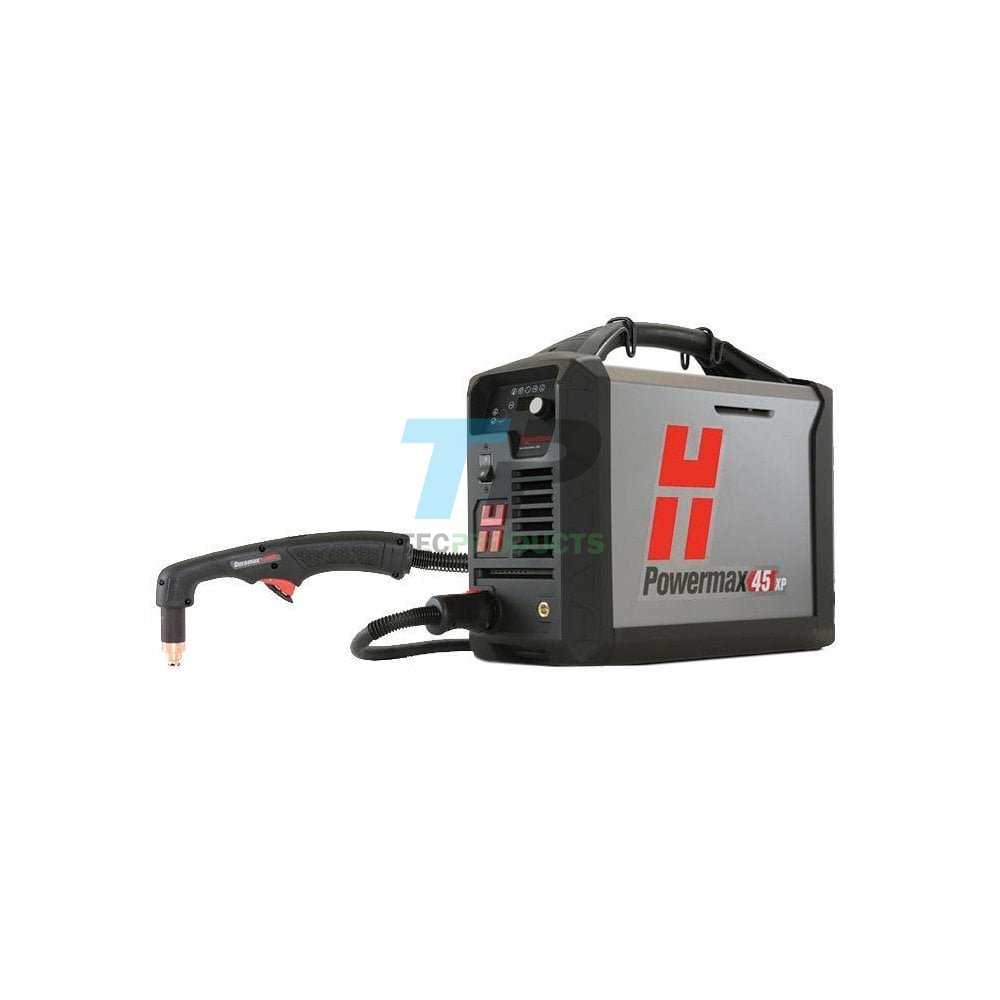

Hypertherm Powermax 45 XP Plasma Cutter Package 240V C/W 6.1M Torch

Code: 088130
  • Now £1,936.00 (ex. VAT)
  • (FREE UK Delivery)
  • RRP £2,420.00 (ex. VAT)
Item in Stock | Usually dispatched within 24 hours
Loading...

Powermax45 XP plasma cutter

The Powermax45® XP delivers increased cut capacity – up to 16 mm (5/8″) metal – as well as faster cut speeds, and automatic gas adjustment for quick, simple setup and operation.

Duramax® Lock torches support handheld and mechanized cutting of a wider range of metal thicknesses, along with precision gouging such as spot weld removal, and marking capabilities.

Easy to use

  • Small size and light weight provide exceptional portability for a 16 mm (5/8") rated cutting system
  • Patented drag-cutting technology makes the Powermax45 XP easy to use – even for first-time operators
  • Smart Sense™ technology ensures that air pressure is always correctly set

Outstanding versatility

Maximum productivity

  • Finish jobs faster, with cut speeds 1.5 times greater than oxyfuel on 6 mm (1/4") mild steel
  • Superior cut and gouge quality reduces time for grinding and edge preparation
  • New torch disable switch feature allows faster, easier changeout of consumables

Rugged and reliable

  • Duramax® Lock torches are designed for high-impact and heat resistance
  • SpringStart™ technology ensures consistent starting and optimum torch performance
  • Hypertherm Certified™ reliability ensures peak performance even in the most demanding environments

Designed for low environmental impact

  • Plasma cutting efficiency is 11% better than its predecessor, enabling you to cut more steel with less power, in less time
  • All plasma system components are recyclable
  • 14% lighter than its predecessor and delivers more cutting power


Specification

Input voltages
(± 10%)
CSA200–240 V, 1-PH, 50–60 Hz
OR
480 V, 3-PH, 50–60 Hz1
CE/CCC230 V, 1-PH, 50–60 Hz
OR
400 V, 3-PH, 50–60 Hz
Input current
@ 6.5 kW
CSA200–240 V, 1-PH, 39/32 A
OR
480 V, 3-PH, 9.4 A1
CE/CCC230 V, 1-PH, 33 A
OR
400 V, 3-PH, 10 A
Output current10–45 A
Rated output voltage145 VDC
Duty cycle
@ 40° C (104° F)
CSA

50% @ 45 A, 200–240 V, 1-PH
60% @ 41 A, 200–240 V, 1-PH
100% @ 32 A, 200–240 V, 1-PH
50% @ 45 A, 480 V, 3-PH
60% @ 41 A, 480 V, 3-PH
100% @ 32 A, 480 V, 3-PH

CE/CCC50% @ 45 A, 230 V, 1-PH
60% @ 41 A, 230 V, 1-PH
100% @ 32 A, 230 V, 1-PH
50% @ 45 A, 400 V, 3-PH
60% @ 41 A, 400 V, 3-PH
100% @ 32 A, 400 V, 3-PH
Open circuit voltage (OCV)275 VDC (200–240 V, CSA/CE/CCC and 480 V, CSA)
265 VDC (400 V CE/CCC)
Dimensions with handles442 mm (17.4″) D; 173 mm (6.8″) W; 357 mm (14.1″) H
Weight with 6.1 m (20′) torchCSA14 kg (31 lbs.)
CE/CCC15 kg (33 lbs.)
Gas supplyCutting: air (clean, dry and oil-free), nitrogen, F5
Gouging: air (clean, dry and oil-free), nitrogen, F5
Marking: air (clean dry and oil-free) argon
Recommended
gas inlet
flow rate/pressure
188 I/min (400 scfh) @ 5,9 bar (90 psi)
Input power cable length3 m (10′)
Power supply typeInverter – IGBT
Engine drive requirement12.5 kVA (10 kW) for full 45 A output
Electrical efficiency88%
Recyclability100%
CertificationsCSA certified for use in the Americas and Asia, except China. CCC for use in China. CE, RCM, GOST-TR, UkrSEPRO, and Serbian AAA for use in Europe, Australia, Belarus, Kazakhstan, Russia, Serbia, Ukraine, and other countries where accepted.
WarrantyPower supply: 3-year
Torch: 1-year
