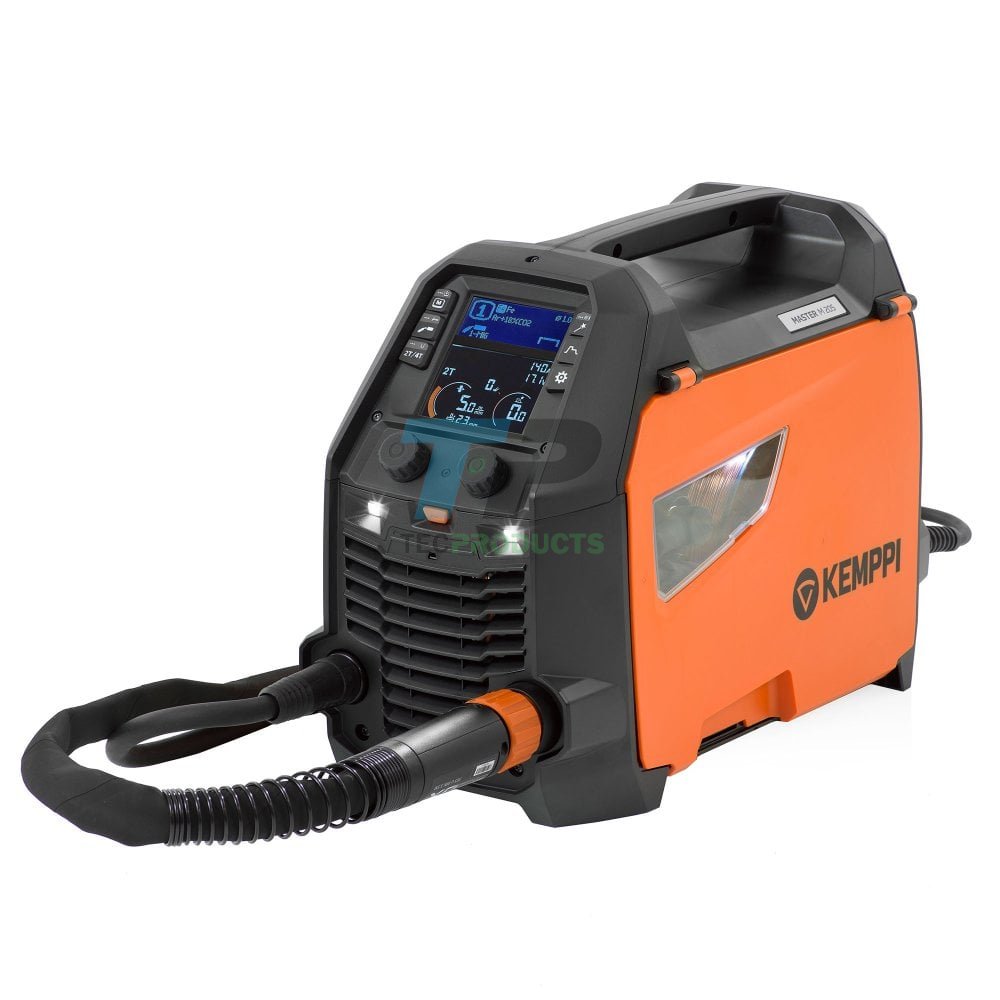

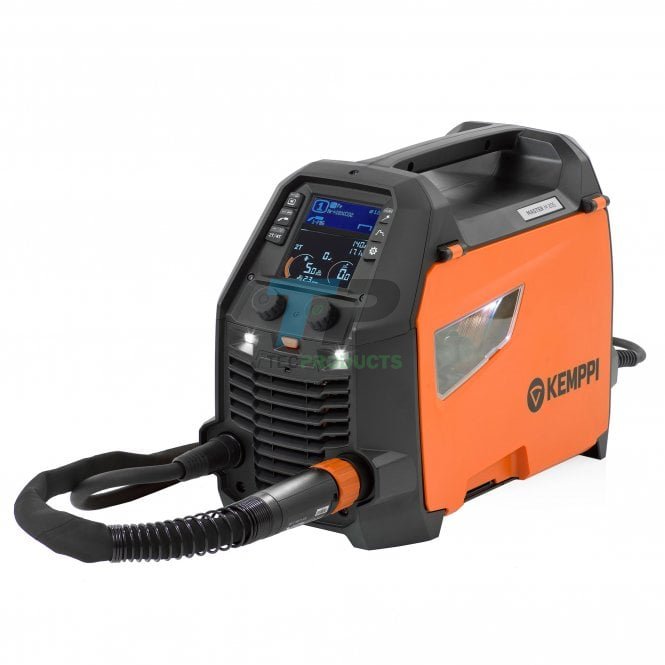

Kemppi Master M 205 Pulse Air Cooled MIG Welder With 5Mtr MIG Torch

Kemppi Master M 205 Pulse Air Cooled MIG Welder With 5Mtr MIG Torch

Code: P514GX3
  • Now $4,610.98
  • (FREE UK Delivery)
  |
Loading...

Why we love the Kemppi Master M 205 Pulse MIG Welder

The Master M 205 sets new standards for power and performance in a portable MIG welding machine. With a portable, lightweight design that's easy to carry, you'll enjoy having a portable MIG welder that can be moved wherever you need it. If you're working in tight spaces, the 5" LCD screen is bright and easy to read, while self-charging LED lights can be turned on to improve safety. They work with or without mains power.

The Master M 205 is also easy to use. These portable MIG welding machines come with Weld Assist, which automatically sets parameters to help you start welding quickly. It's a simple solution that welders can also use with minimal experience. Just select the material thickness, joint type, and welding position, and start welding.

The Master M 205 is a portable pulse MIG welder with 200 amps of power at a 40% duty cycle. Take on a wider range of materials with pulse welding and do your best work anywhere with the convenience of a 1-phase power supply. Save time and take welding to the next level with 37 built-in MIG/MAG welding programs for Fe, Ss, AlMg5, AlSi5, CuSi3, and CuAl8 filler materials. The Master M 205 comes with 17 pulse-MIG programs and 20 1-MIG programs.

If you're looking for a portable MIG welder that can complete high-quality welds in challenging environments, the Master M 205 should be at the top of your list

Key Features

  • Versatile process selection with premium MIG/MAG, DC TIG, and stick welding options
  • Master M 205 includes a pulse MIG welding option with a 1-phase power supply
  • Lightweight and portable welders that are easy to carry anywhere
  • Ideal for tight workspaces
  • Master M 205: 17 pulse MIG welding programs and 20 1-MIG welding programs as a standard
  • Root pass welding, thin sheet welding, and gap bridging with MAX Cool arc welding process as a standard in Master M 323
  • Self-charging LED work lights for better worksite safety
  • Designed to be lifted with a crane
  • Weld Assist feature for fast parameter setting
  • 6 memory channels
  • 40 % duty cycle
  • Compatible with a generator
  • Multivoltage as a standard feature
  • Alternative transport cart options

Kit Includes:

  • Kemppi Master M 205 Pulse MIG Welder
  • Kemppi Flexlite GXe305G MIG Torch

***Please Note Feed Rollers Need To Be Ordered Separately ***


5 Year Warranty Sign

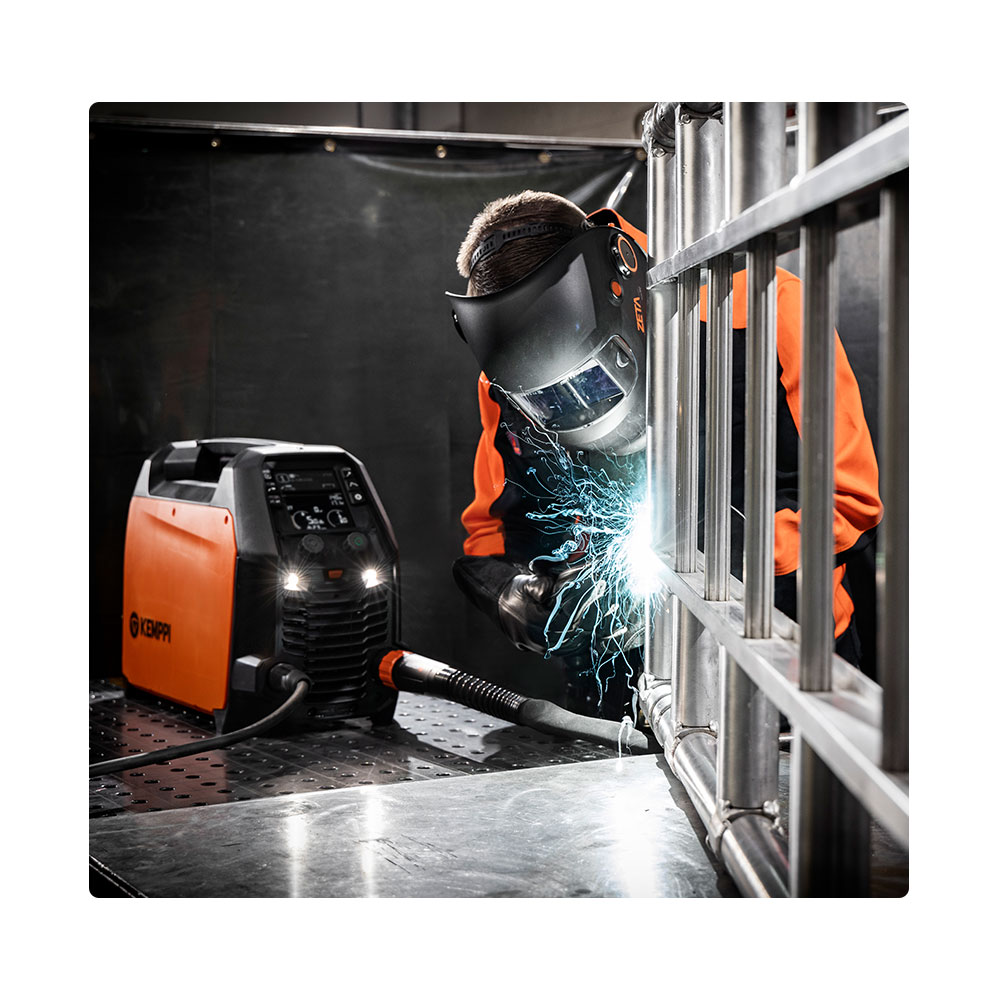

Invest in Work Site Safety and Ergonomics

Master M 205 and 323 are equipped with self-charging LED work lights for better safety and convenience. Use with or without mains power connected, and improve safety in low light conditions. In addition, both models are safe to lift from the handle by a crane. lightweight models are easy to carry and enable working in tight spaces.

Invest in Work Site Safety and Ergonomics

Master M 205 and 323 are equipped with self-charging LED work lights for better safety and convenience. Use with or without mains power connected, and improve safety in low light conditions. In addition, both models are safe to lift from the handle by a crane. lightweight models are easy to carry and enable working in tight spaces.

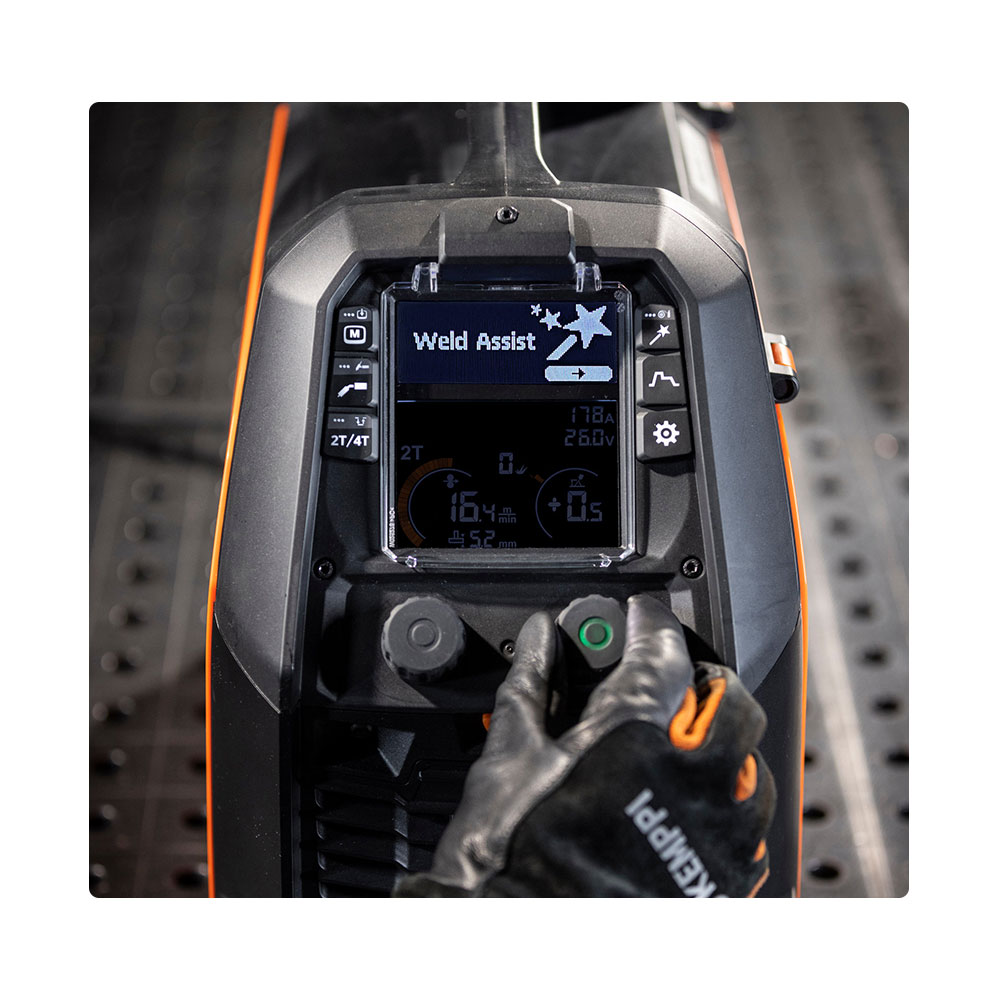

Up to 60% Faster Parameter Setting

Welding parameter setting has never been this fast! Weld Assist is a guidance tool for fast setup. Select matrial thickness, joint type, and welding position; you are ready to weld.

Up to 60% Faster Parameter Setting

Welding parameter setting has never been this fast! Weld Assist is a guidance tool for fast setup. Select matrial thickness, joint type, and welding position; you are ready to weld.

MIG weld
MIG Weld

Control Welding Current with Powerlog Feature

PowerLog is a trigger logic function for improved welding current control. Change between two or three power levels during welding with a welding gun's trigger click. Power levels can be adjusted independently.

Control Welding Current with Powerlog Feature

PowerLog is a trigger logic function for improved welding current control. Change between two or three power levels during welding with a welding gun's trigger click. Power levels can be adjusted independently.

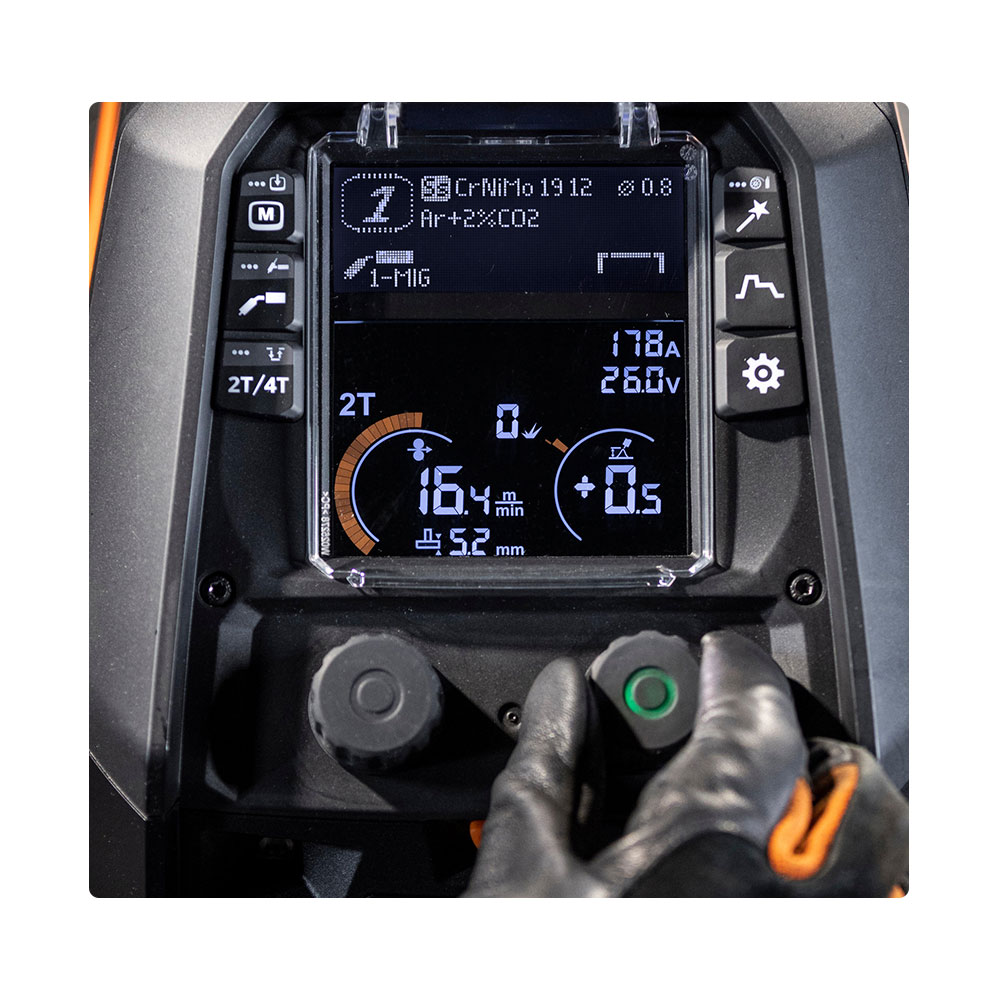

Head start to welding with pre-installed welding programs

Master M 323 and 205 have a versatile package of factory-installed welding programs, making welding easier, improving welding quality, and saving time compared to manual parameter setting.

Head start to welding with pre-installed welding programs

Master M 323 and 205 have a versatile package of factory-installed welding programs, making welding easier, improving welding quality, and saving time compared to manual parameter setting.

Man MIG Welding
Kemppi Welder Technical Specifications
Mains connection voltage 1~ 50/60 Hz 220...240 V ±10 %
Mains connection cable type H07RN-F
Mains connection cable size 2.5 mm²
Fuse 16 A
Mains fuse (@MV low range) 16 A
Output range, MIG 15 A / 10 V ... 200 A / 28 V
Output range, TIG 15 A / 1 V ... 200 A / 28 V
Output range, MMA 15 A / 10 V ... 175 A / 31 V
Maximum supply current [I1max] 28 ... 23 A
Rated maximum input power [S1max] 6 kVA
Idle state power consumption [P1idle] 17 W
No-load state power consumption (MMA), power save 17 W
No-load state power consumption (MMA), fans ON 120 W
Filler wires - Fe 0.8 ... 1 mm
Filler wires - Ss 0.8 ... 1 mm
Filler wires - Al 0.8 ... 1.2 mm
Wire feed speed 0.5 ... 25 m/min
Wire spool weight (max) 5 kg
Wire spool diameter (max) 200 mm
Shielding gas pressure (max) 0.5 MPa
Operating temperature range -20 ... 40 °C
Storage temperature range -40 ... 60 °C
Degree of protection IP23S
External dimensions LxWxH 520 mm x 250 mm x 379 mm
Weight without accessories 16.2 kg
Recommended generator power (min) 15 kVA
Standards IEC 60974-1, -10
Voltage adjustment range, MIG 10 ... 32 V
Power factor at rated maximum current [λ] 0.99
Efficiency at rated maximum current [η] 84 %
EMC class A
Voltage supply for cooling unit 220...240 V, 24 V
Welding Connection Type Euro
Control panel, model Custom LCD
Control panel, display Color LCD
Control panel, controls 2 control knobs, Push buttons
Control panel, type of installation Built-in
Control panel, input voltage (DC) 12 V
LED battery type and voltage SAMSUNG SDI (INR18650-26J; 3,6 V; 2600 mAh); LG CHEM (ICR18650HE4; 3,6 V; 2500 mAh)
Output, duty cycle % at rated max. current, MIG 40 %
Output at +40 °C, rated max current, MIG 200 A
Output at +40 °C, 60% MIG 170 A
Output at +40 °C, 100% MIG 140 A
Output, duty cycle % at rated max. current, MIG (@MV low range) 30 %
Output at +40 °C, rated max current, MIG (@MV low range) 120 A
Output at +40 °C, 60% MIG (@MV low range) 95 A
Output at +40 °C, 100% MIG (@MV low range) 75 A
Output range, MIG (@MV low range) 15 A / 10 V ... 120 A / 21 V
Output range, TIG (@MV low range) 15 A / 1 V ... 120 A / 21 V
Output range, MMA (@MV low range) 15 A / 10 V ... 100 A / 24 V
Kemppi Torch Technical Specifications
Welding connection type Euro
Type of cooling Air
Contact tip M10x1
Method of guidance Manual
Load capacity 100% / Ar + 18% CO₂ 350 A
Load capacity test, filler wire diameter 1.2 mm
Load capacity test, stick out length 18 mm
Load capacity test, gas flow 15 l/min
Gun handle Yes
Neck type Changeable, Rotating
Neck dimensions: length 117 mm
Neck dimensions: height 97 mm
Neck dimensions: angle 50 °
Welding torch cable length 3.5 m
Remote control GXR10 (optional)
Standards IEC 60974-7
